A pictorial comparison of various Lumiled Luxeon LED Emitters.
Images are all digital for now. The "Lit Emitter" images were all shot manually with the same exposure - approximately 1/60 second at f7.4. Thew were shot with a Nikon digital camera in manual mode into RAW format. No post-processing was done other than converting them from RAW to Photoshop to JPG.

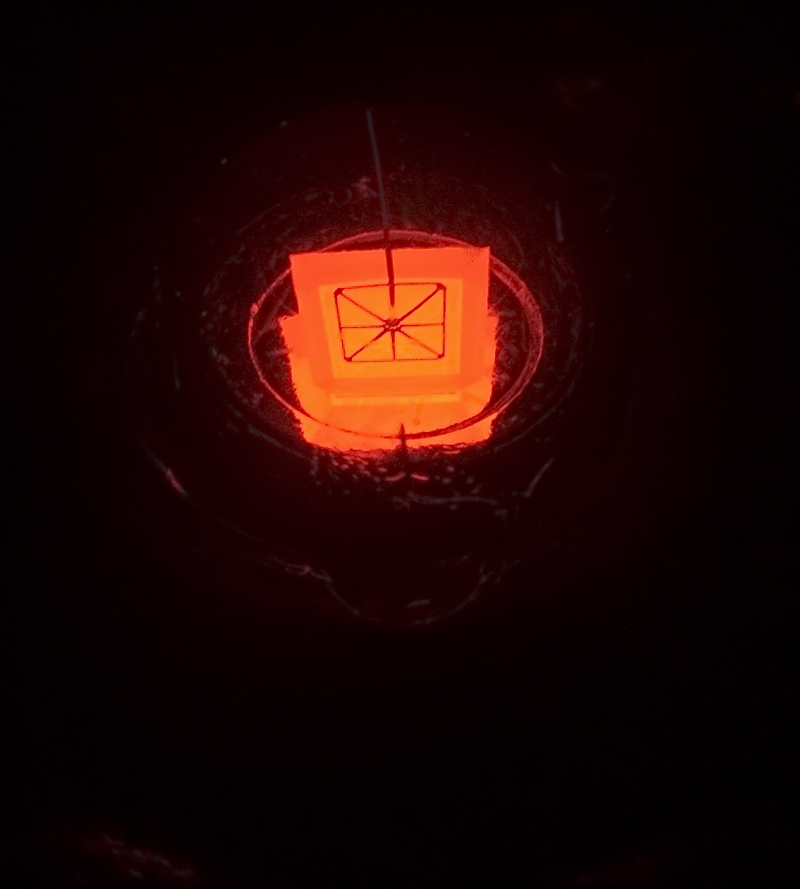

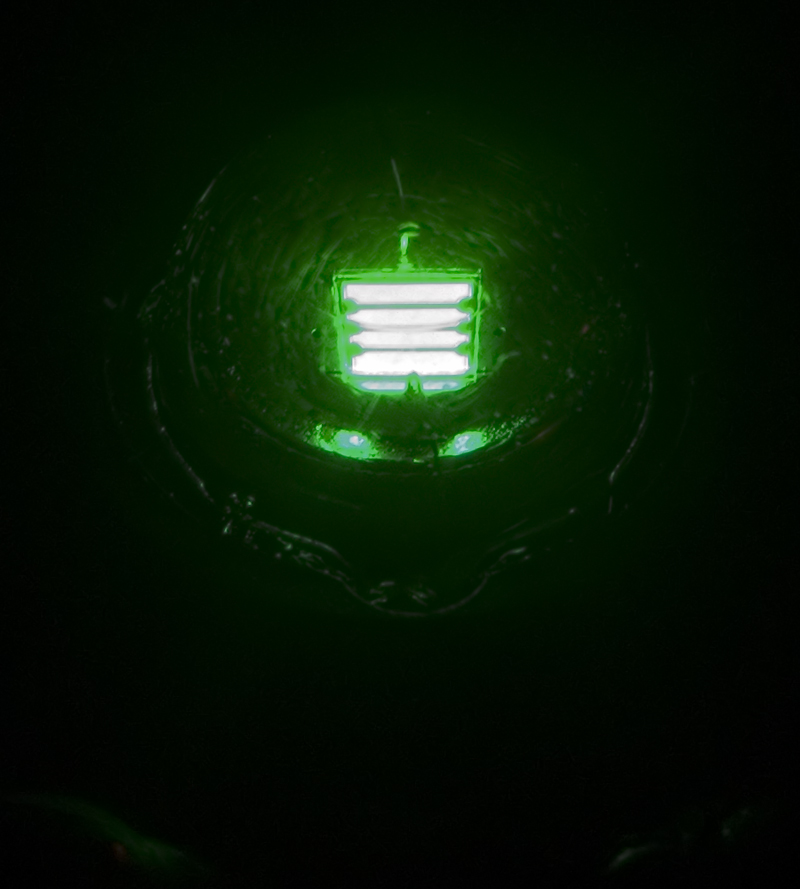

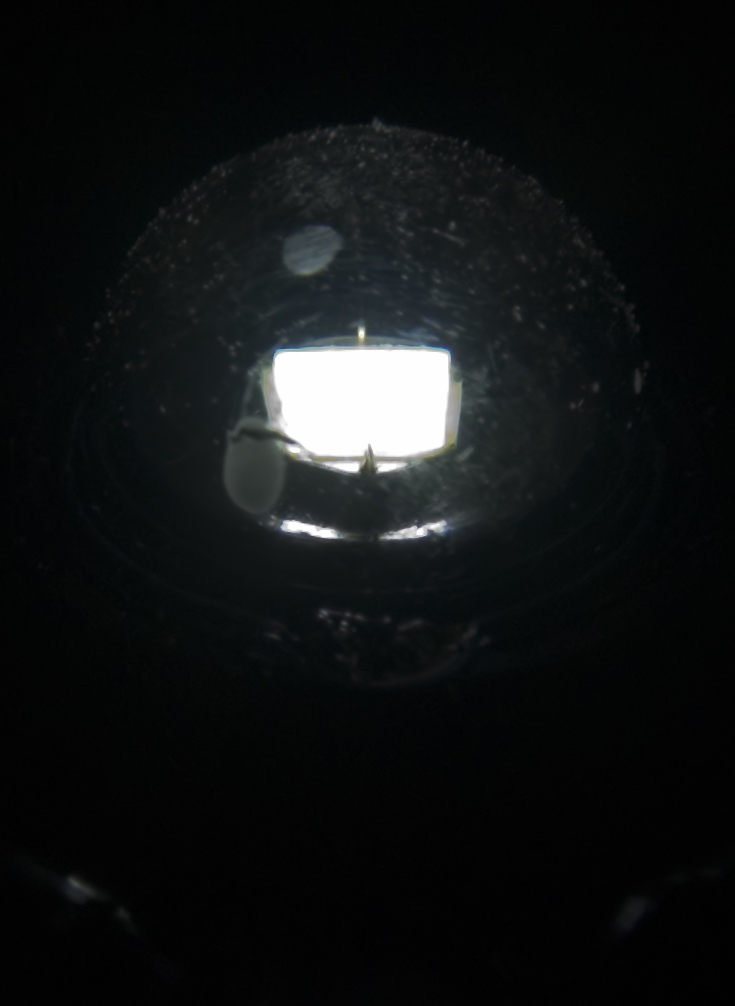

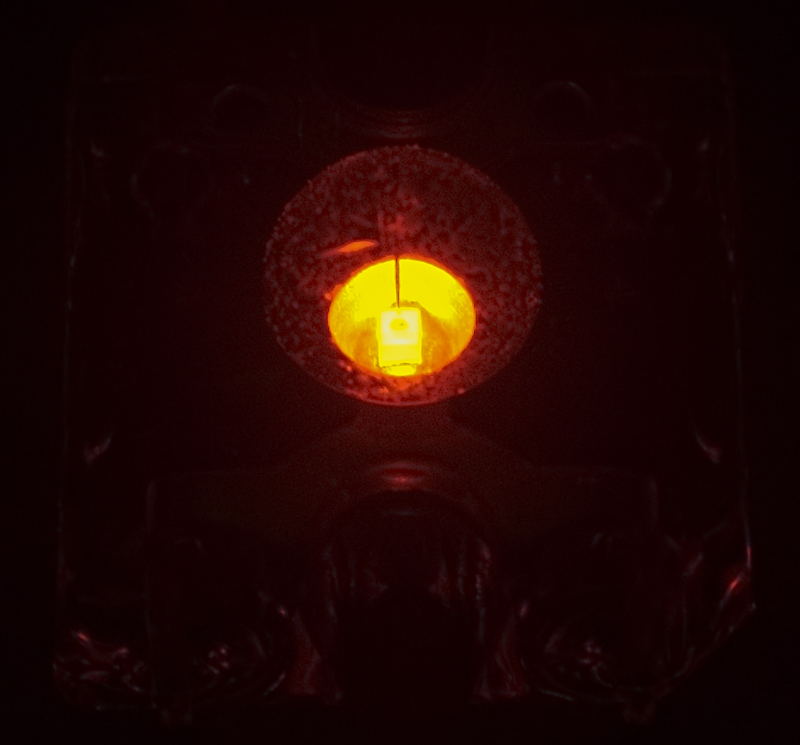

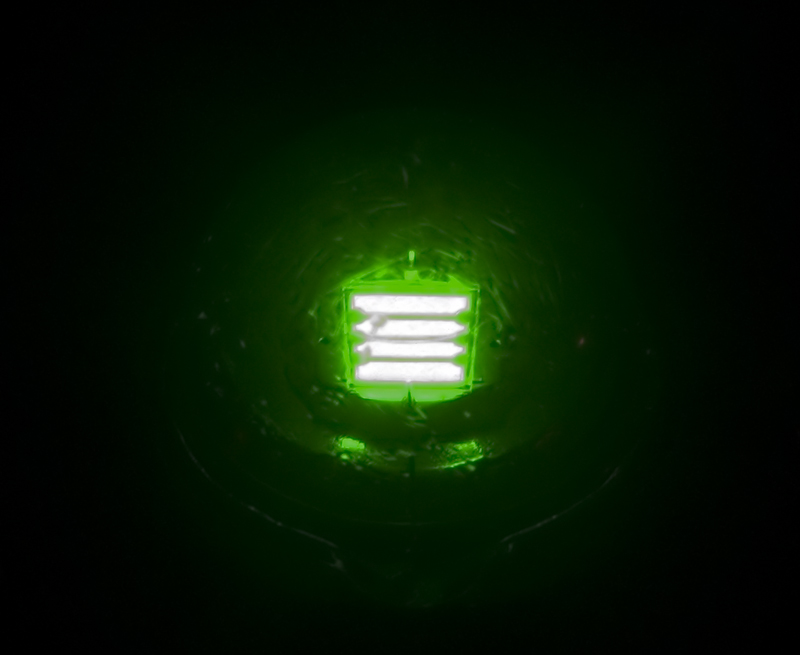

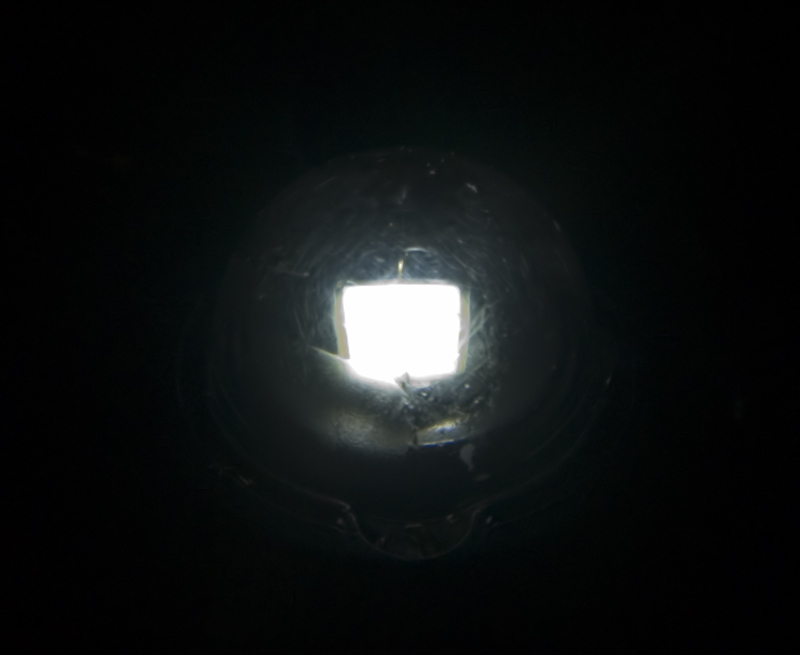

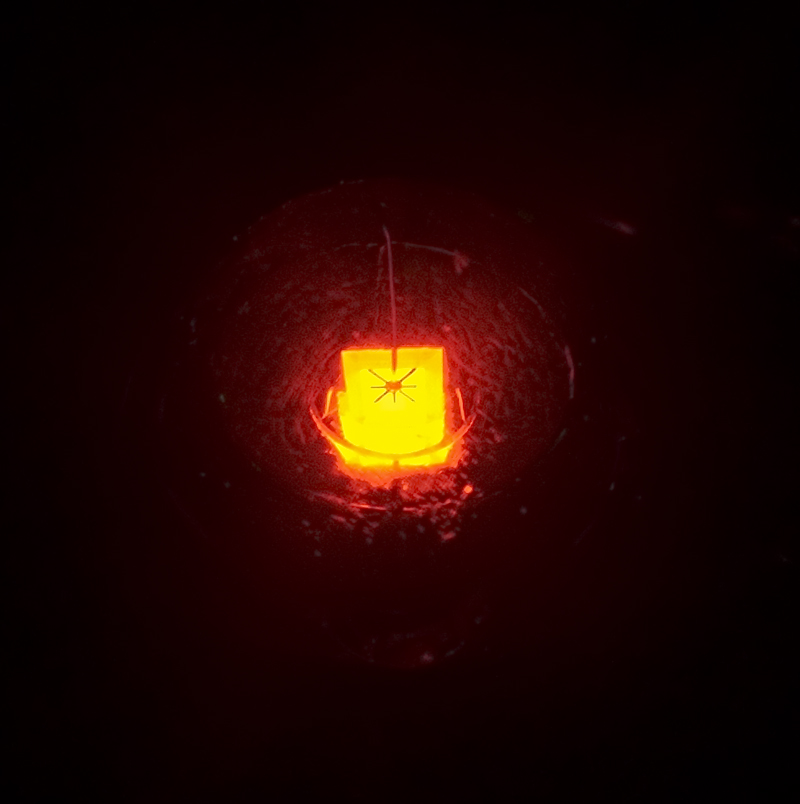

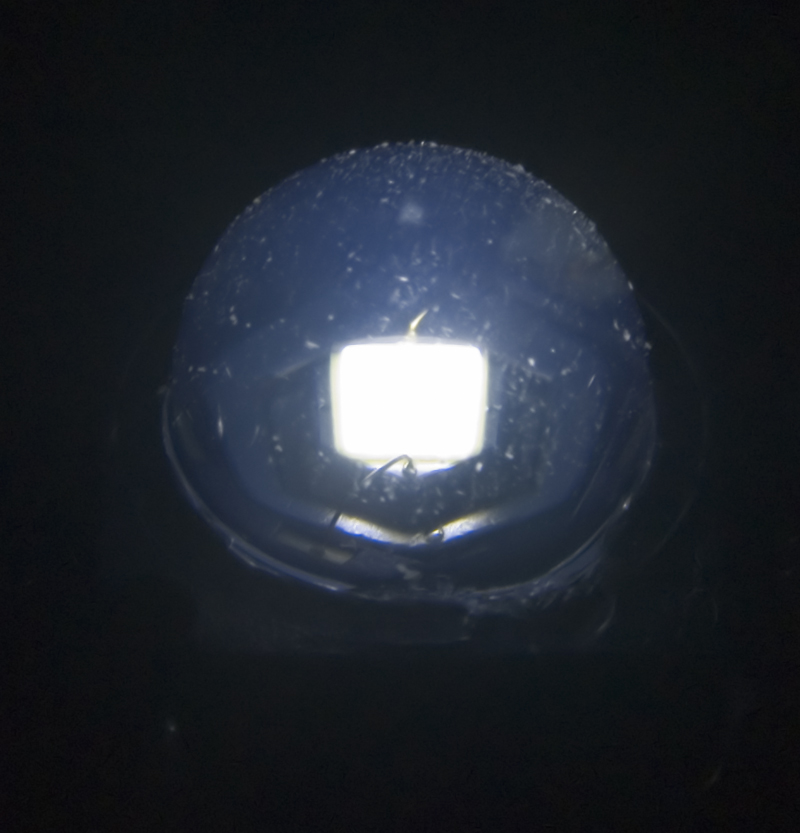

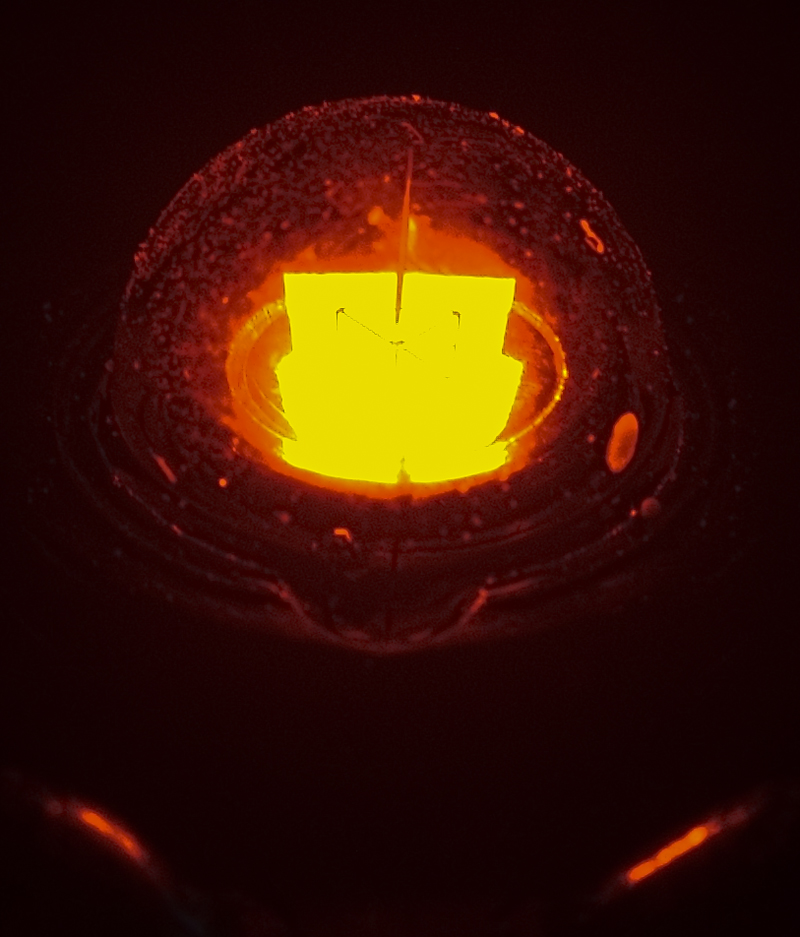

The "Lit Junction" images are attempts to show the LED chip/die itself. Some show it in good detail, some in relatively poor detail. I find the different chip configurations by color within the same LED line interesting. You are free to skip these if this does not interest you.
Images are links to larger images.
| LED Type |
Power |

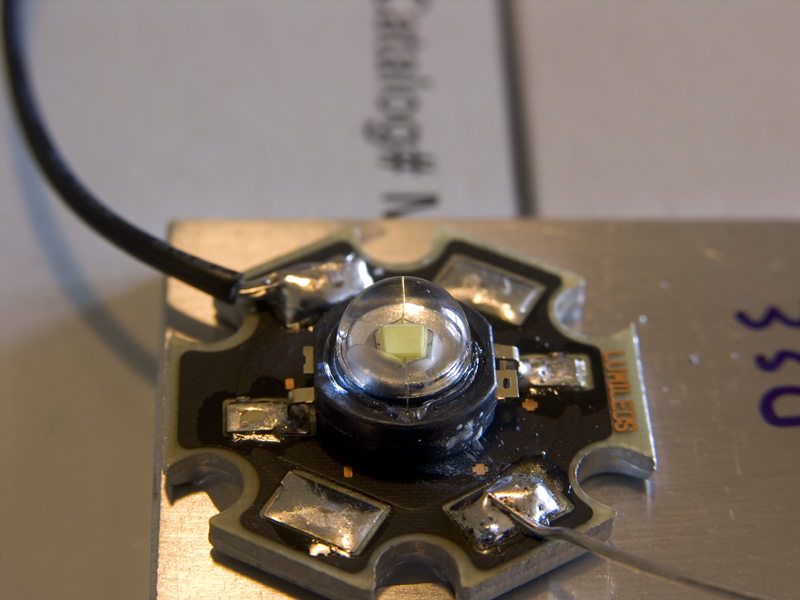

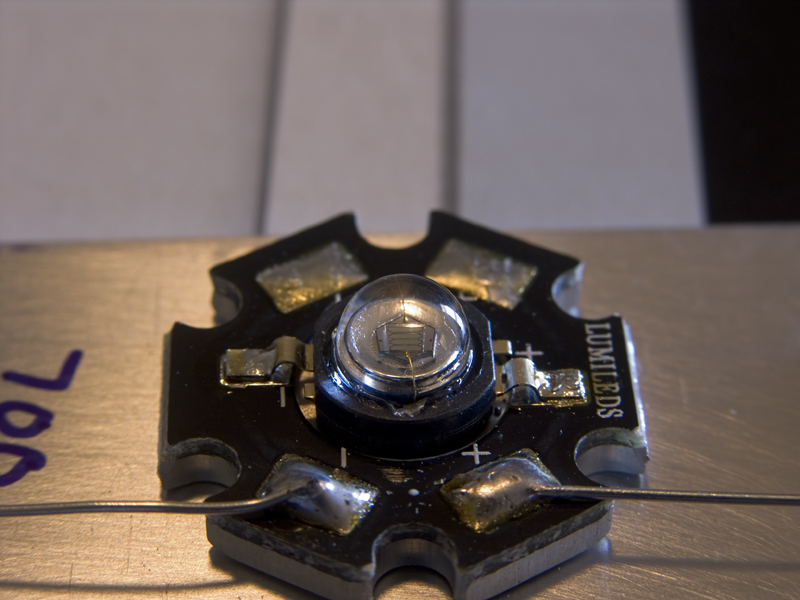

Unlit Emitter |

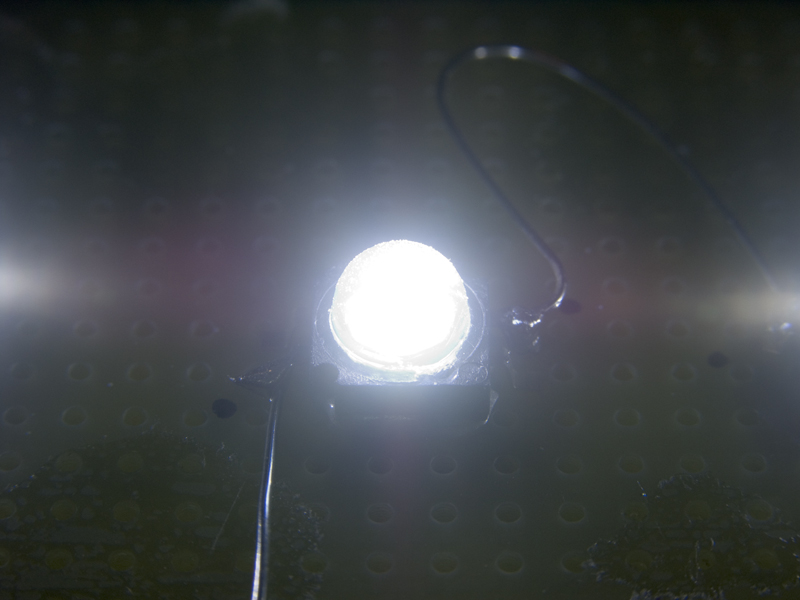

Lit Emitter |
Lit Junction |
|

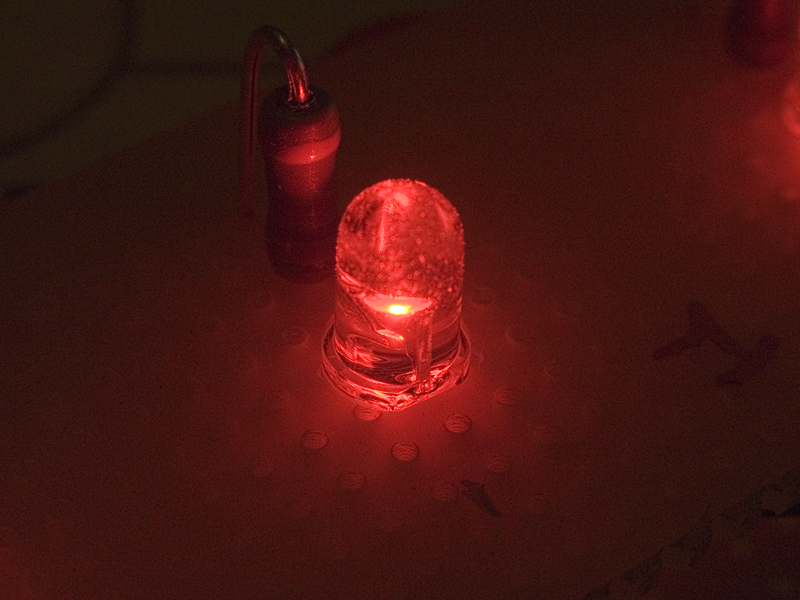

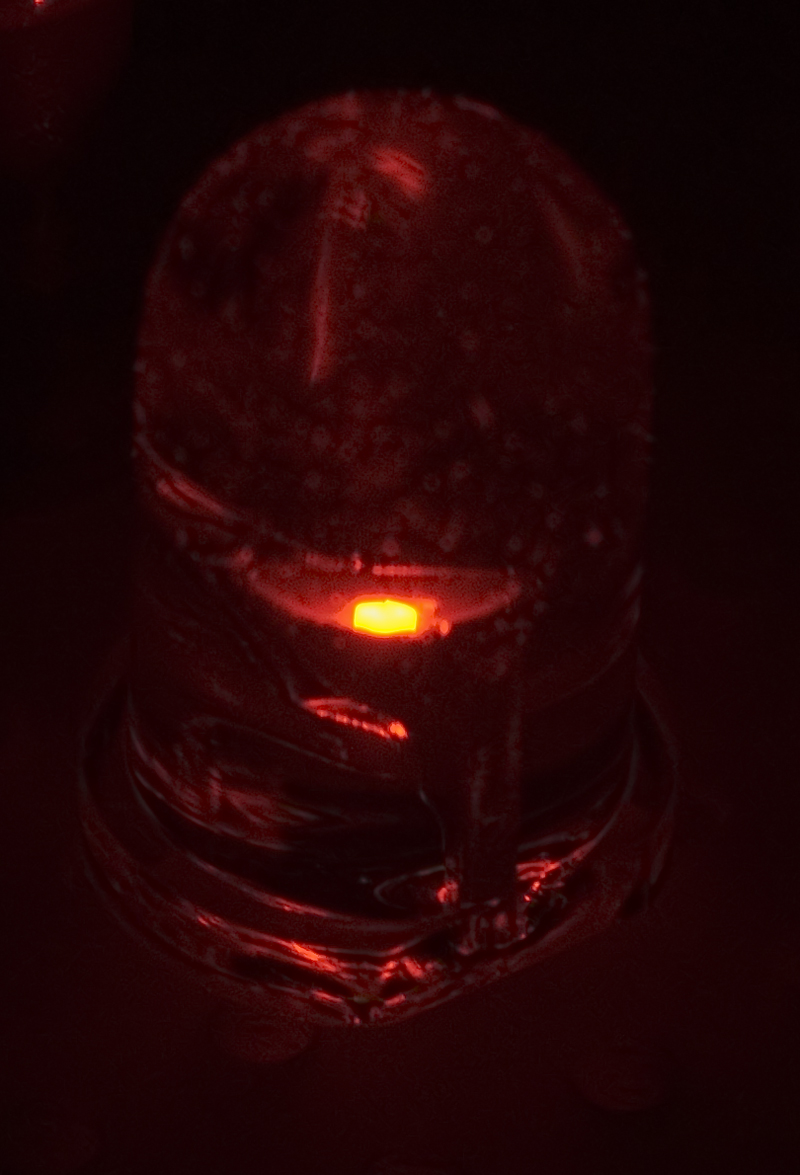

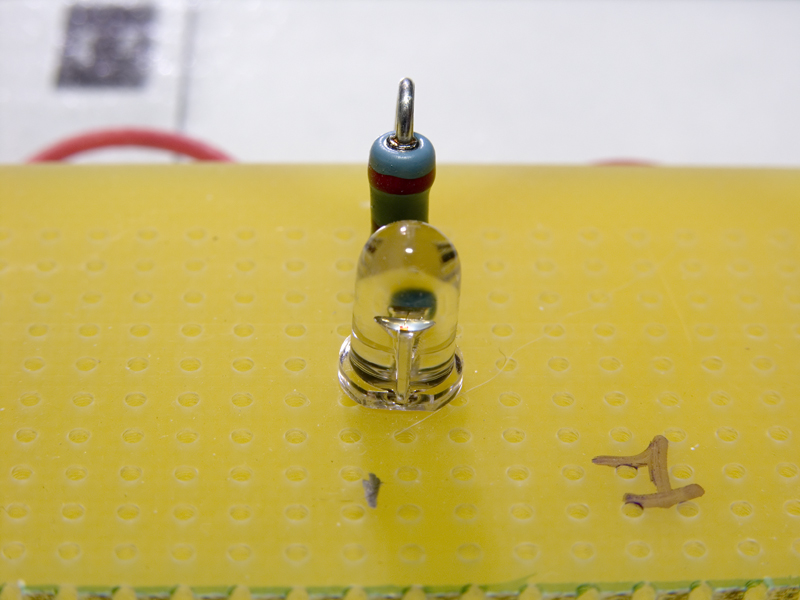

Off-the-shelf Red "high-power" LED
Resistor:
Forward Voltage:
Forward Current: |
Circuit Type: parallel
Power Source: 13.8V regulated |
 |
 |
 |
|

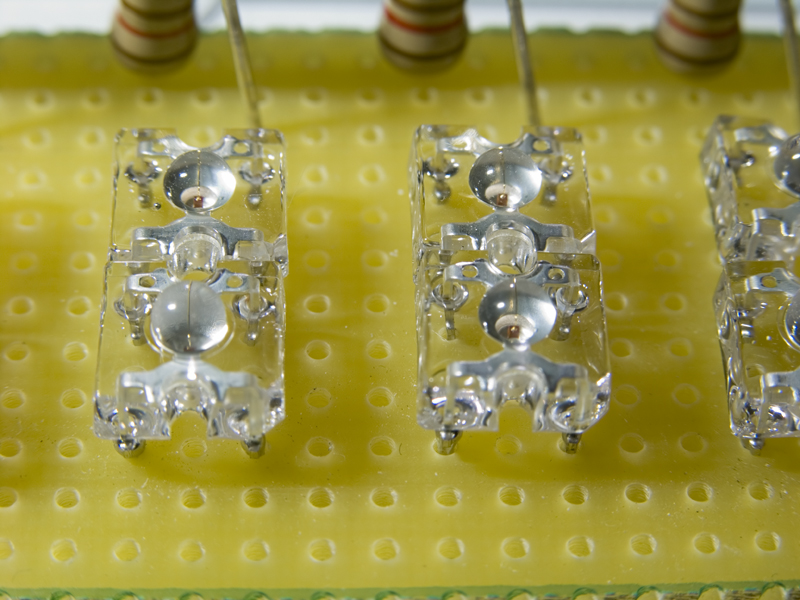

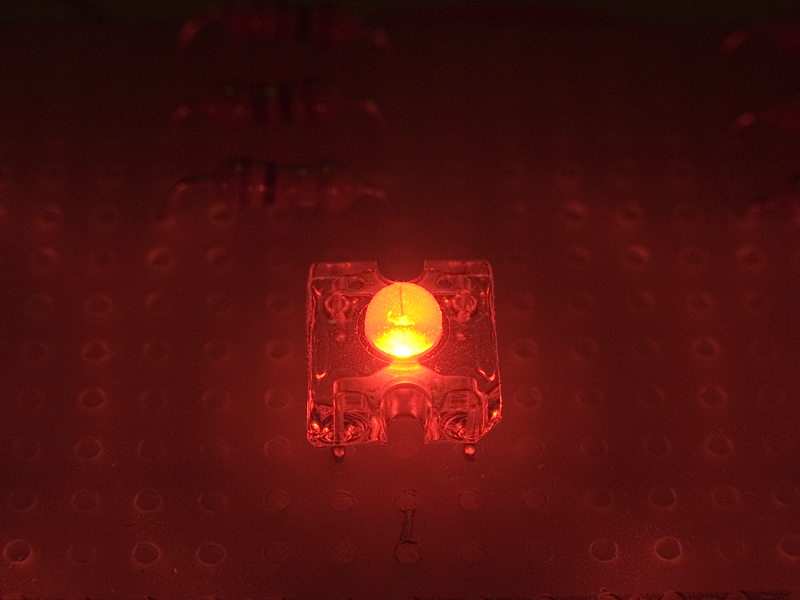

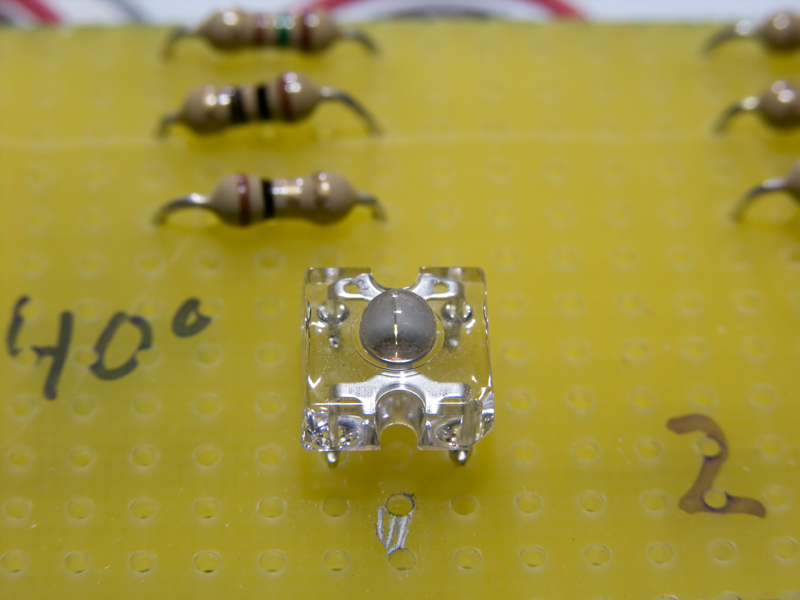

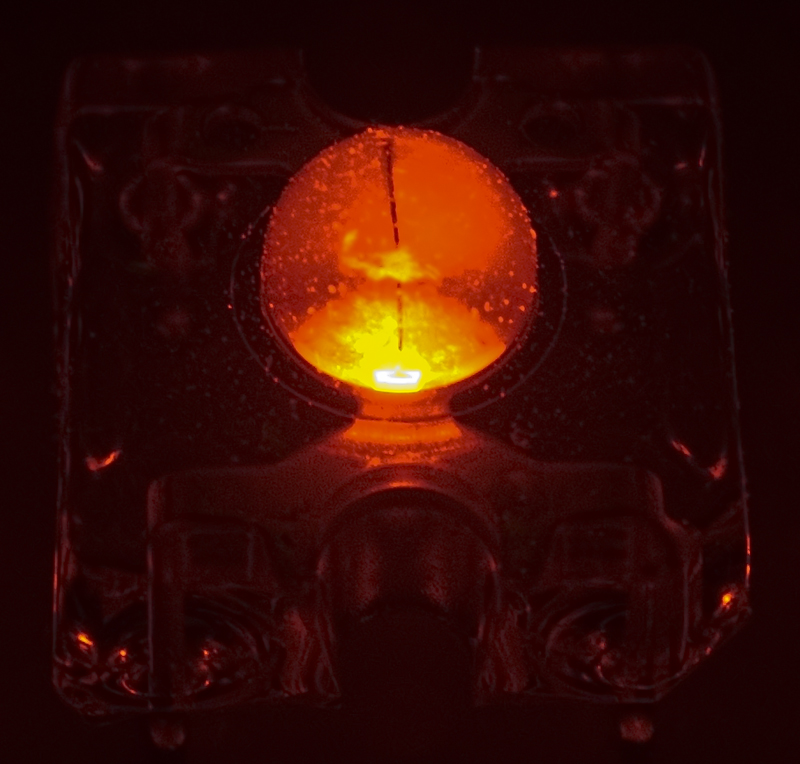

SuperFlux Red 40 degree
Resistor:
Forward Voltage:
Forward Current: |
Circuit Type: parallel
Power Source: 13.8V regulated |
 |
 |
 |
|

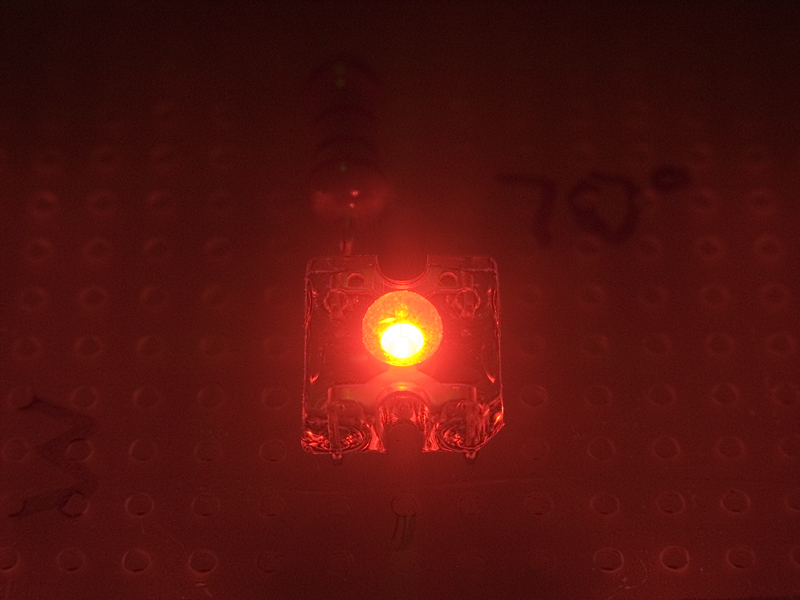

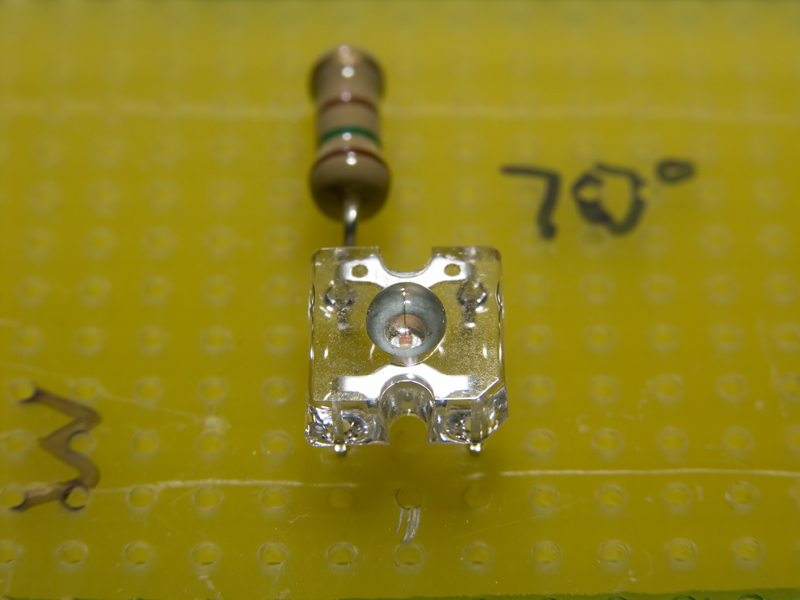

SuperFlux Red 70 degree
Resistor:
Forward Voltage:
Forward Current: |
Circuit Type: parallel
Power Source: 13.8V regulated |
 |
 |
 |
|

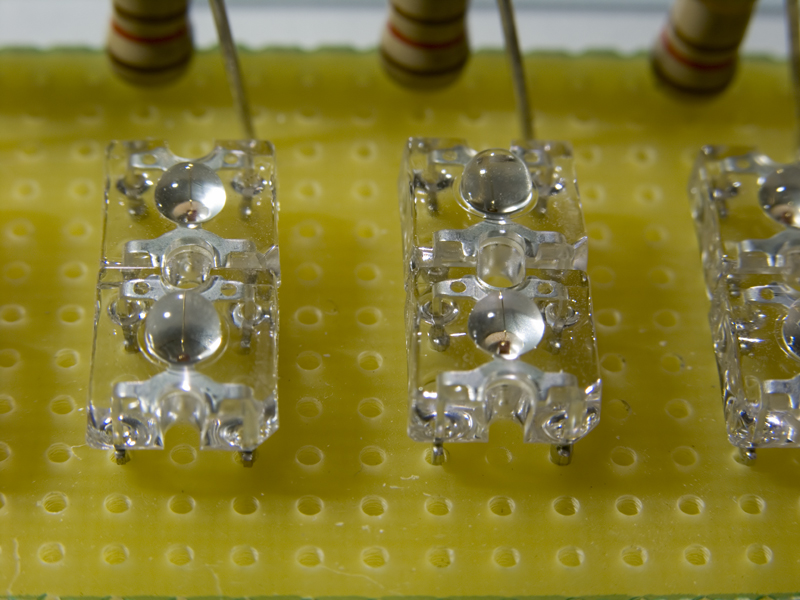

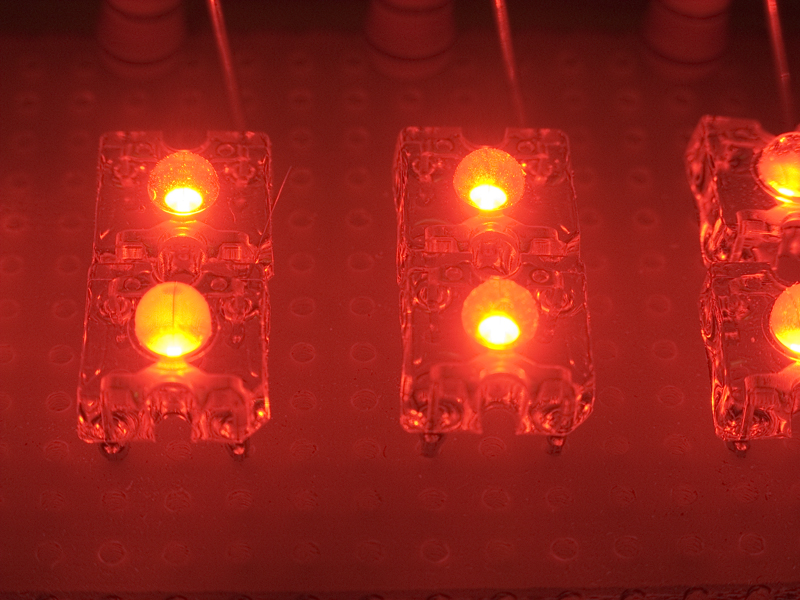

SuperFlux Red 40/70 degree
Resistor:
Forward Voltage:
Forward Current: |
Circuit Type: parallel
Power Source: 13.8V regulated |
 |
 |
 |
|

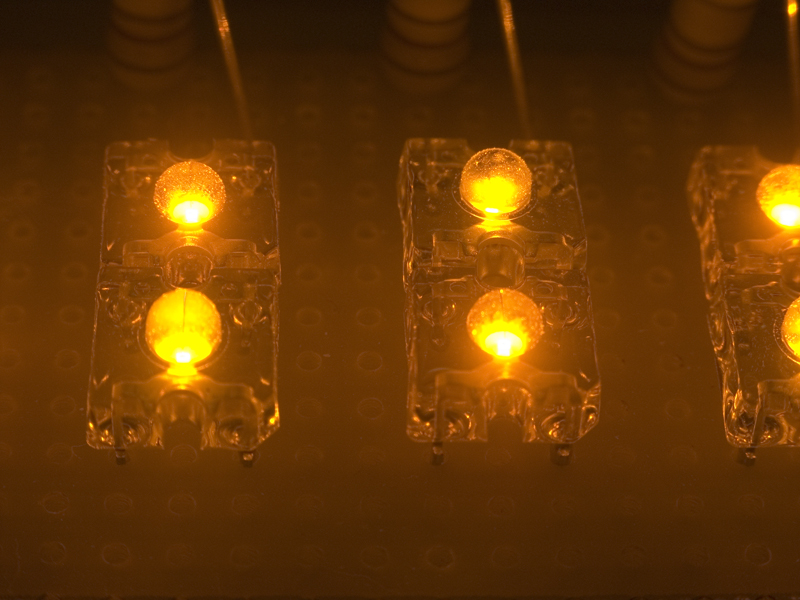

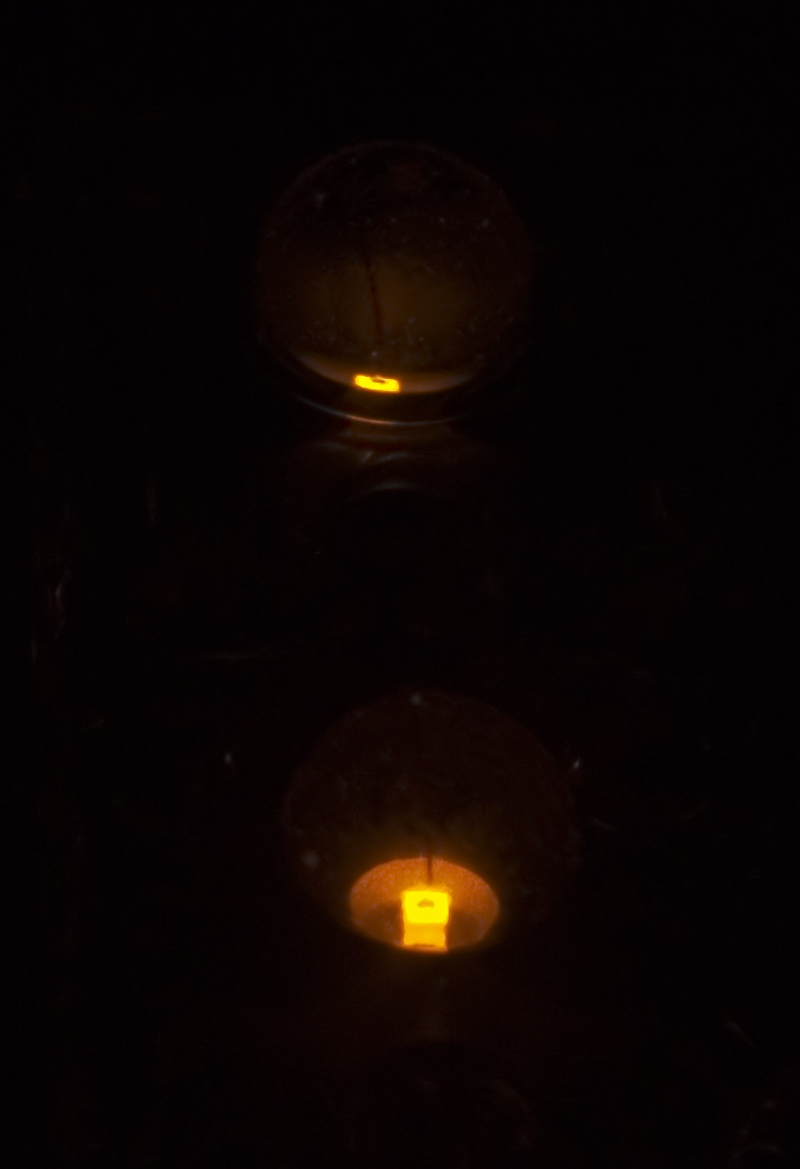

SuperFlux Amber 40/70 degree
Resistor:
Forward Voltage:
Forward Current: |
Circuit Type: parallel
Power Source: 13.8V regulated |
 |
 |
 |
|

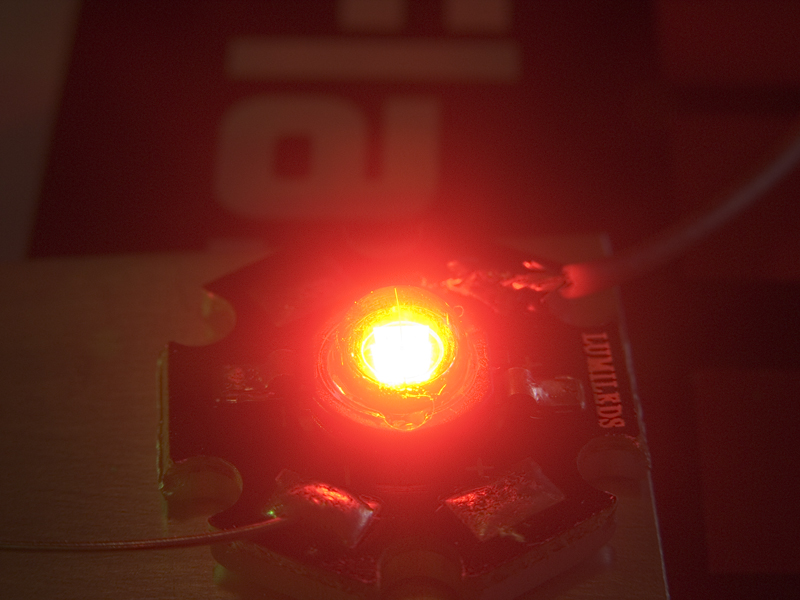

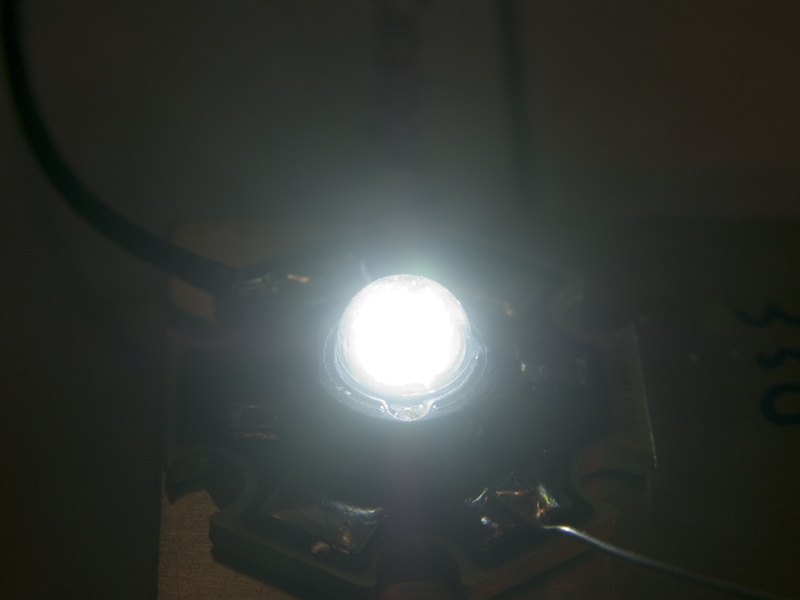

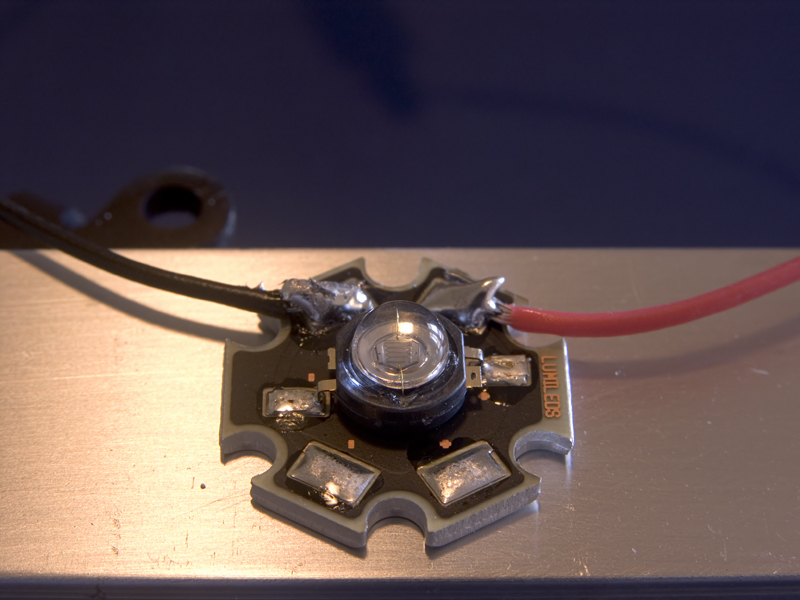

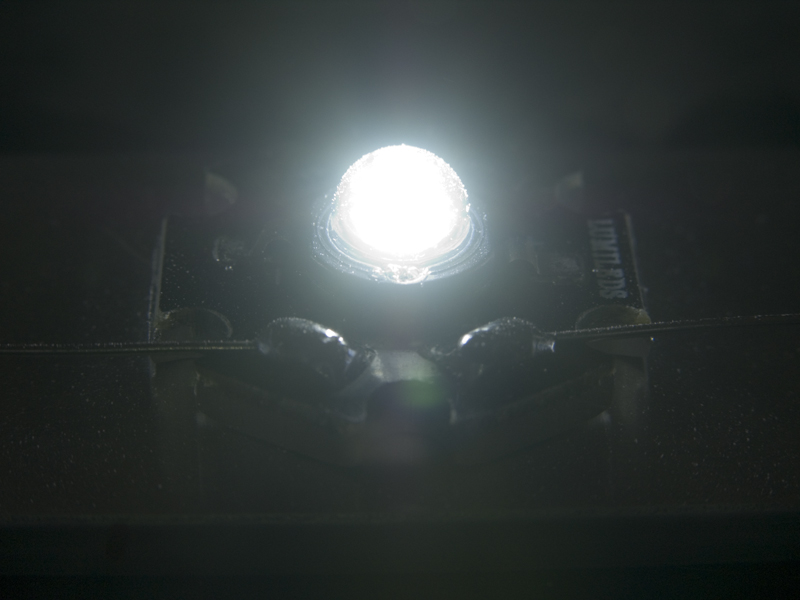

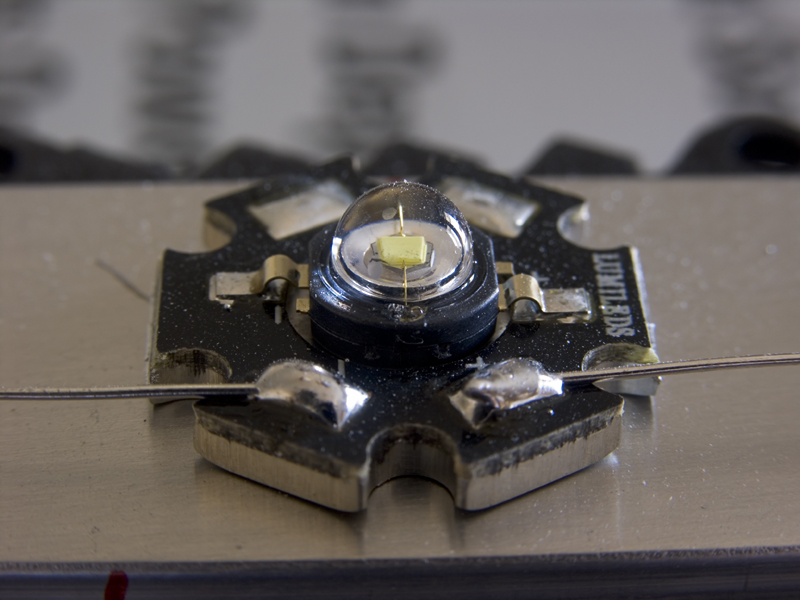

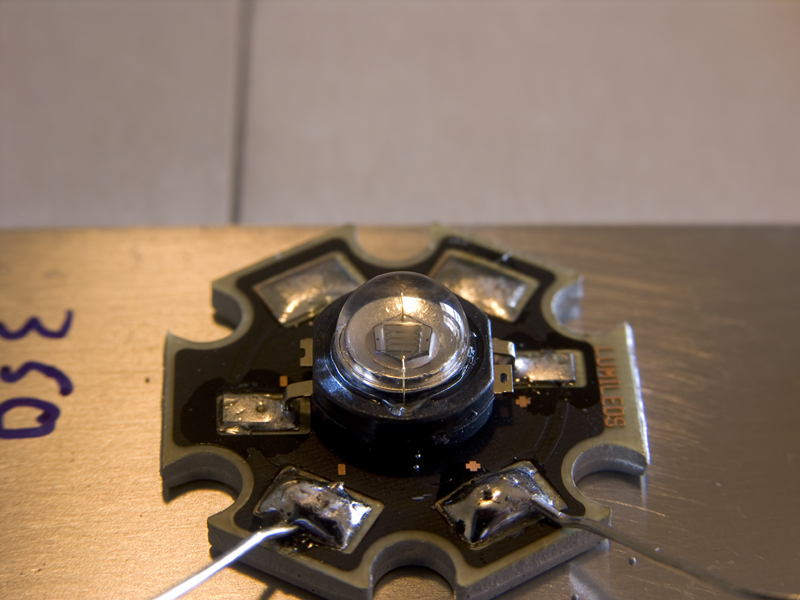

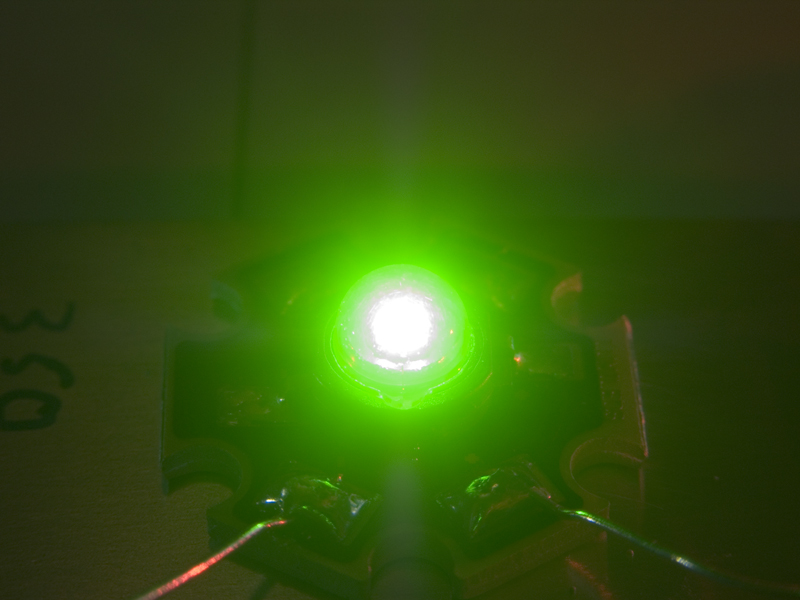

Luxeon I stars
Red, Green, White
Resistor: none
Forward Voltage:
Forward Current: 350 mA |
Circuit Type: series
Power Source: 350 mA current regulated |
|
|
|
|

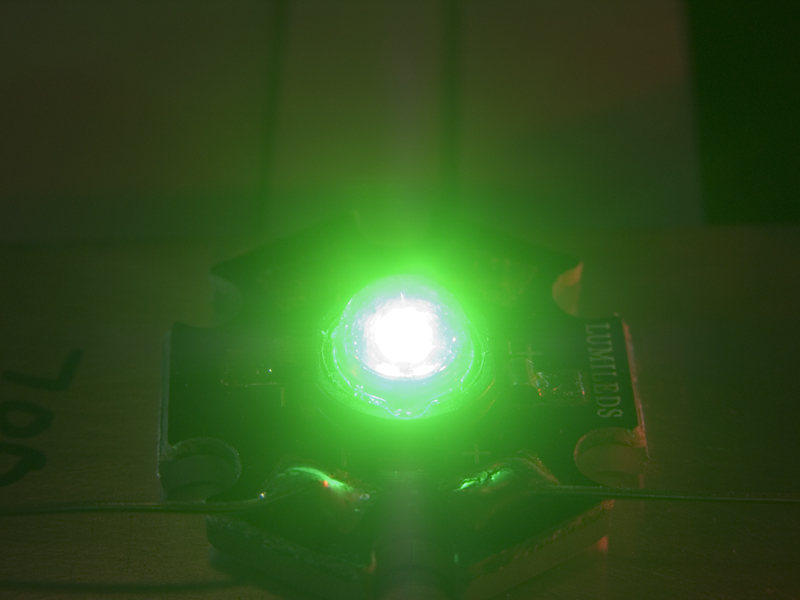

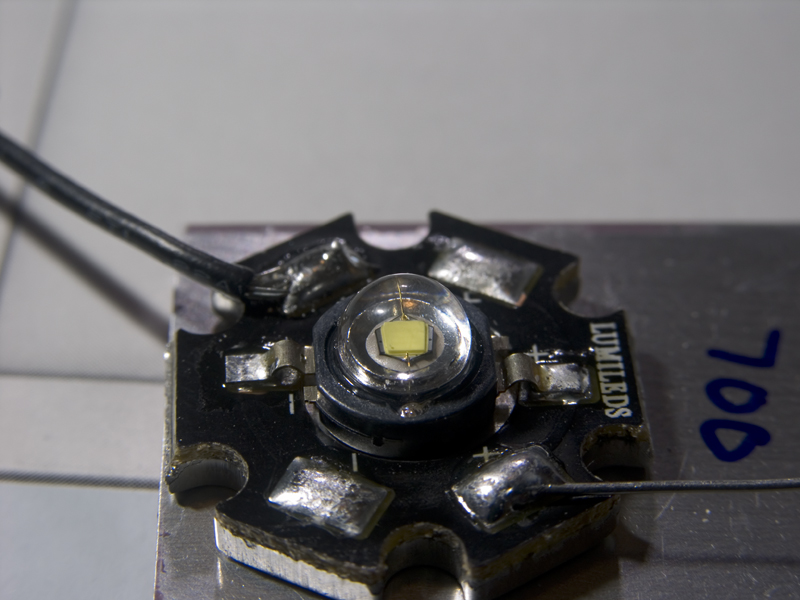

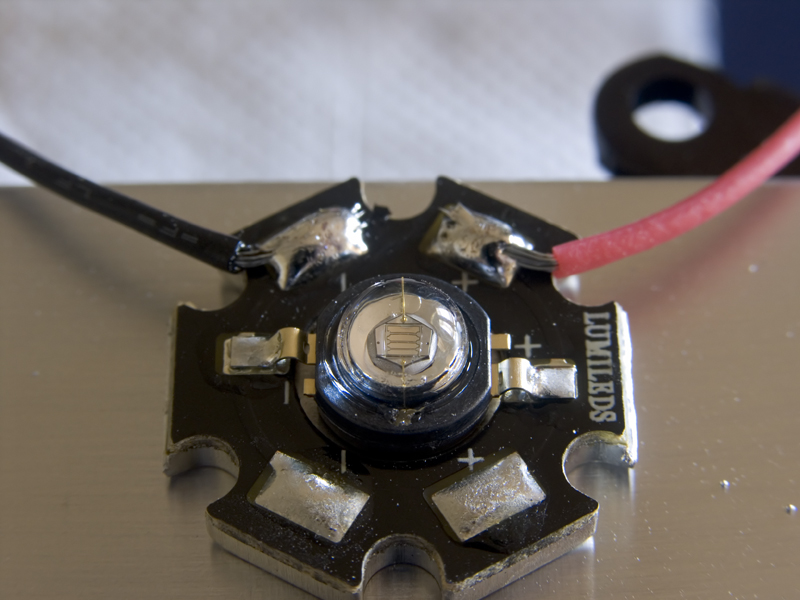

Luxeon III stars
Red, Green, White
Resistor: none
Forward Voltage:
Forward Current: 700 mA |
Circuit Type: series
Power Source: 700 mA current regulated |
|
|
|
|

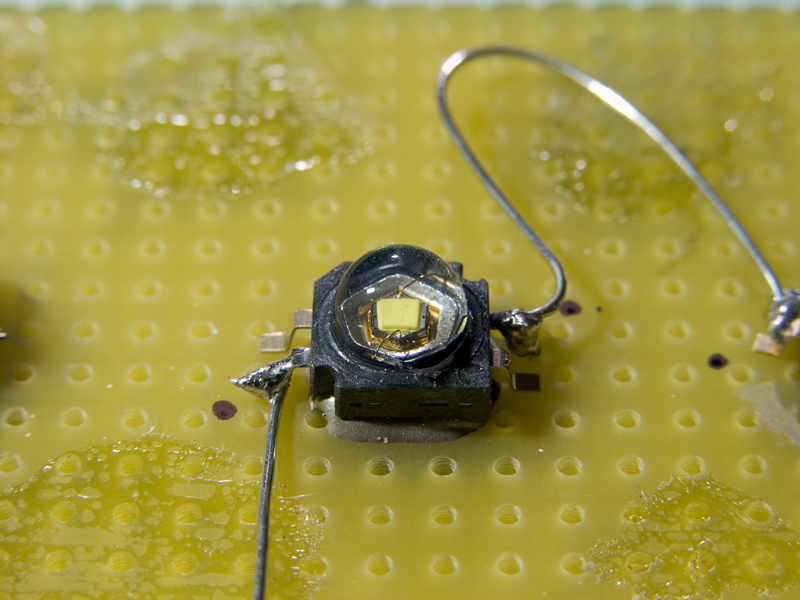

Luxeon K2 - white
Resistor: none
Forward Voltage:
Forward Current: 700 mA |
Circuit Type: series
Power Source: 700 mA current regulated |
 |
 |
 |
|
Luxeon I Line - white
Resistor: none
Forward Voltage: 21V
Forward Current: 700 mA |
Circuit Type: 2 parallel series
Power Source: 700 mA current regulated |
|
|
|
|

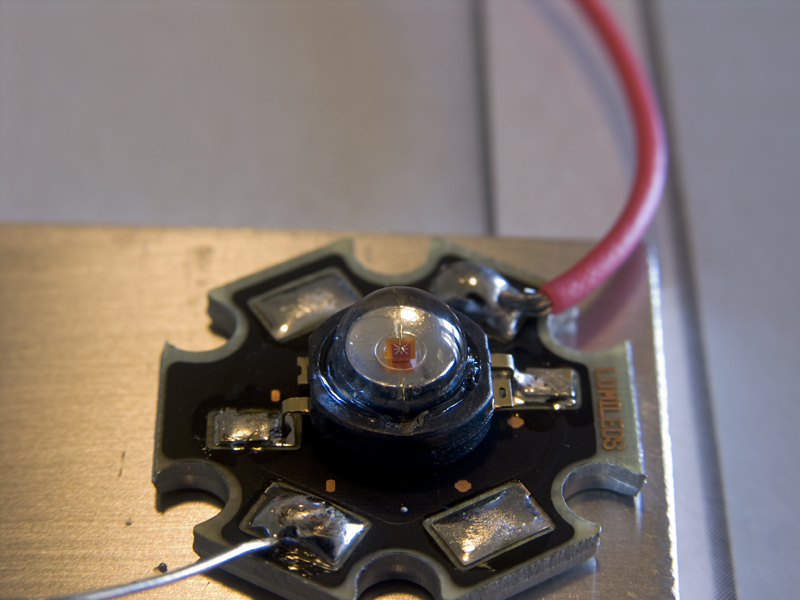

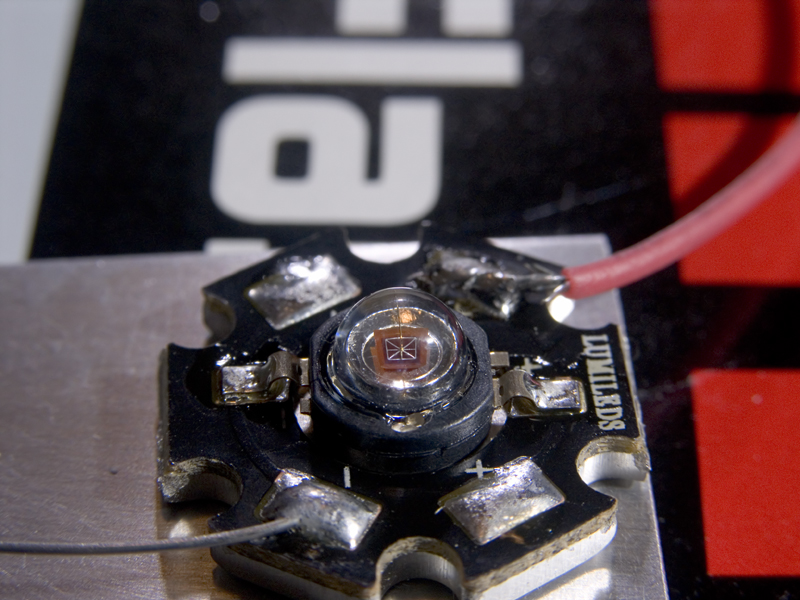

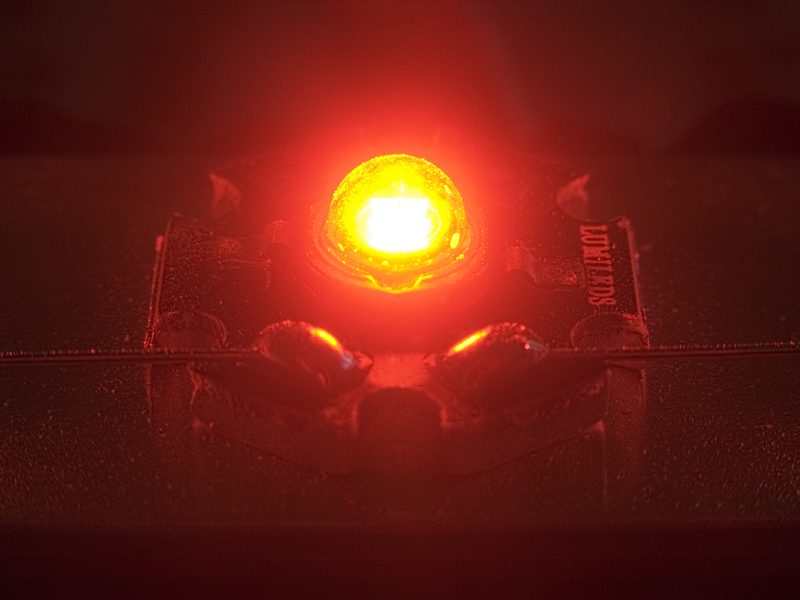

Luxeon III - Red
Resistor: None
Forward Voltage:
Forward Current: 700 mA |
Circuit Type: 5 in series
Power Source: 700 mA current regulated |
 |
 |
 |
|

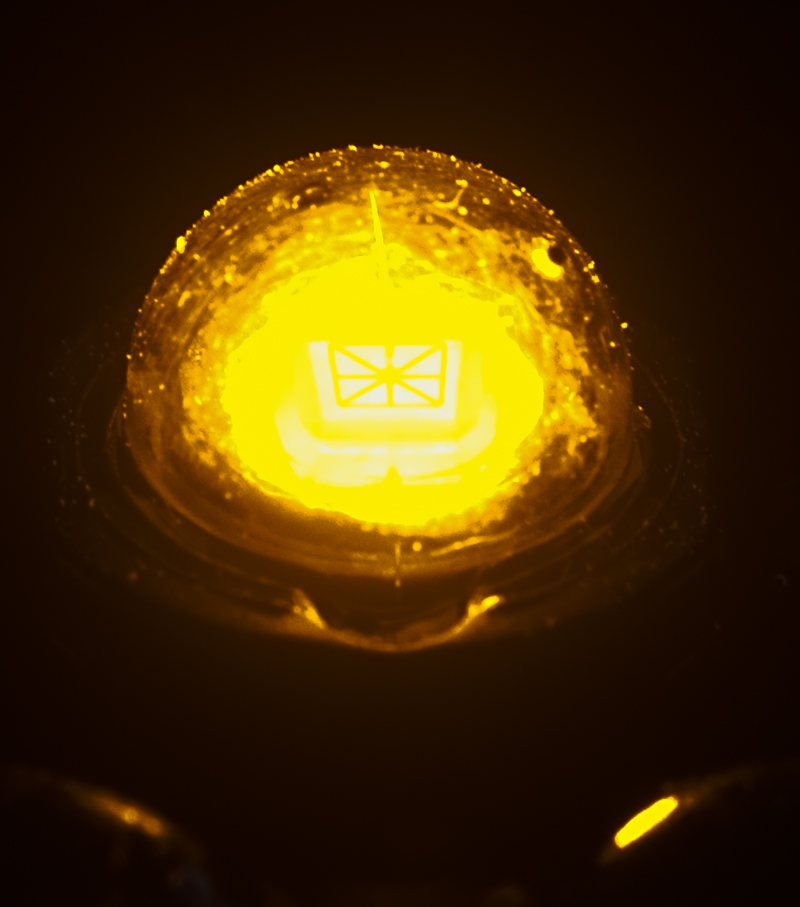

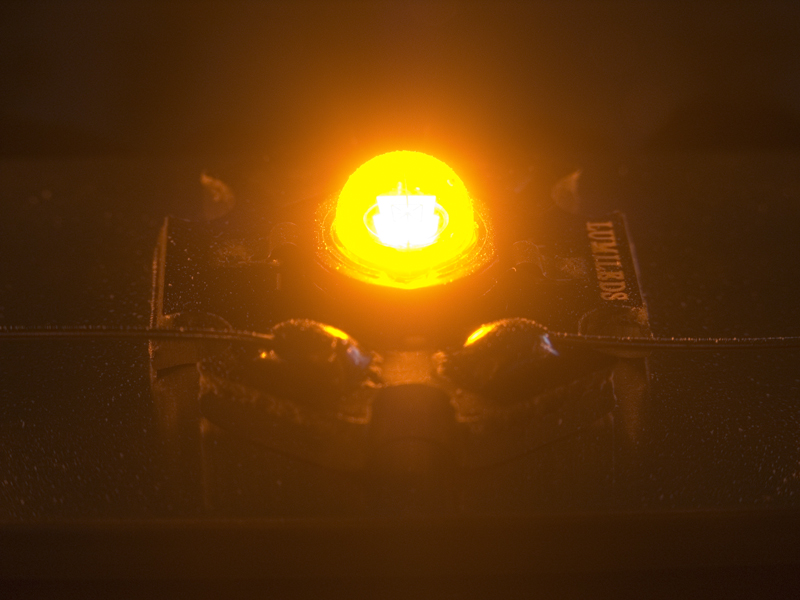

Luxeon III - Amber
Resistor: None
Forward Voltage:
Forward Current: 700 mA |
Circuit Type: 5 in series
Power Source: 700 mA current regulated |
|
 |
 |
|

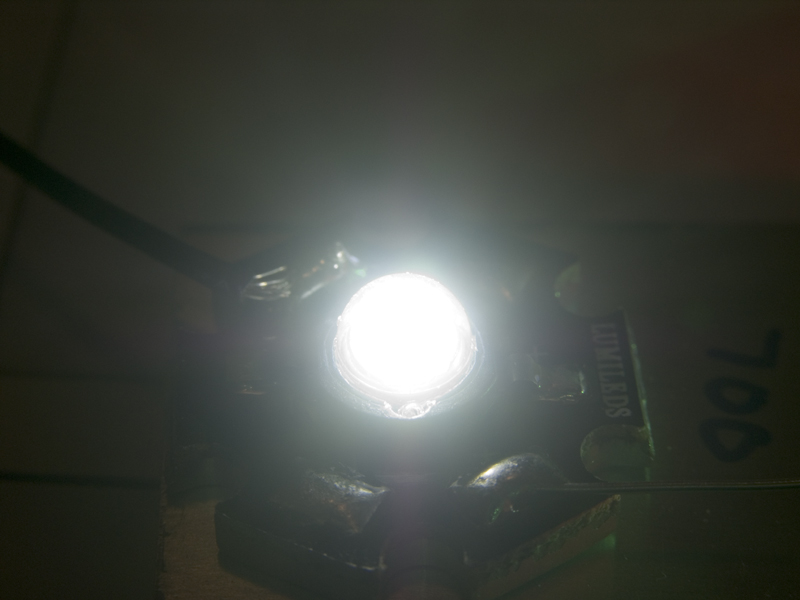

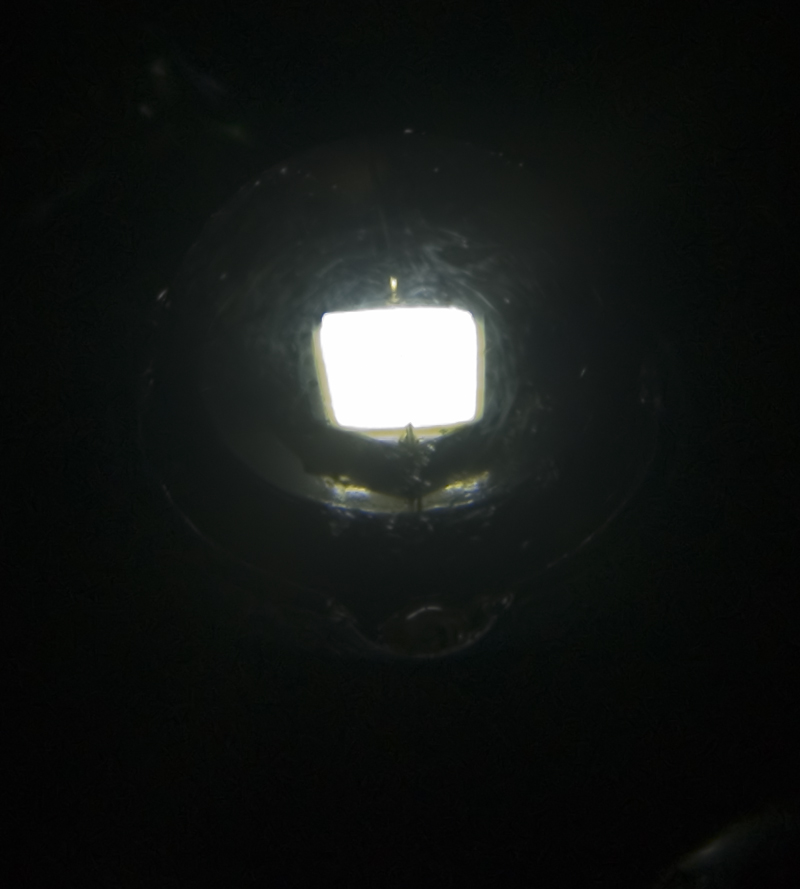

Luxeon III - White
Resistor: None
Forward Voltage:
Forward Current: 700 mA |
Circuit Type: 5 in series
Power Source: 700 mA current regulated |
 |
 |
 |
|

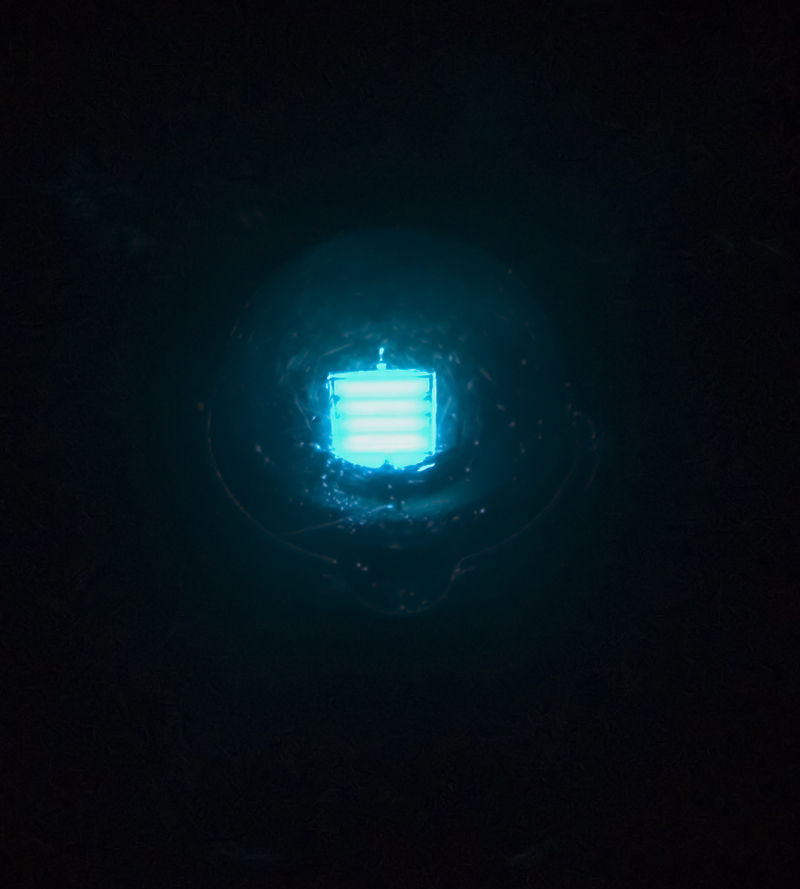

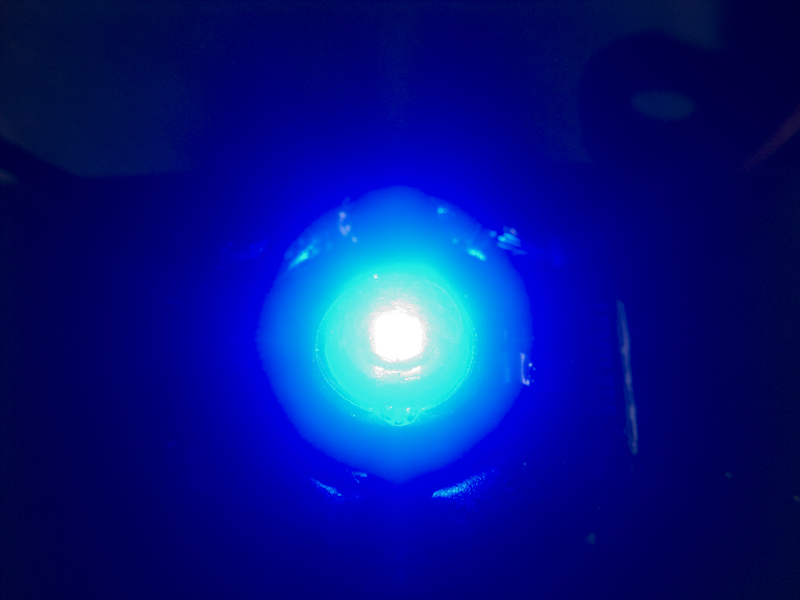

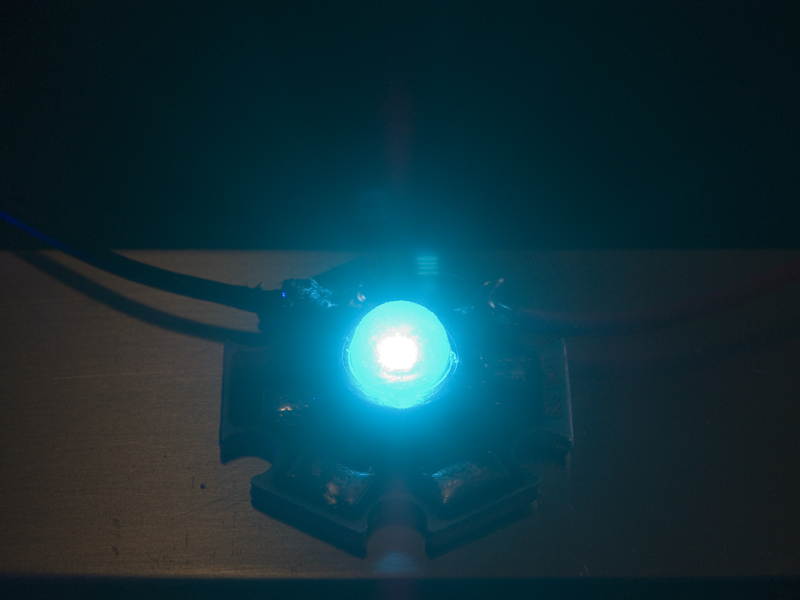

Luxeon III - Blue
Resistor: None
Forward Voltage:
Forward Current: 700 mA |
Circuit Type: single LED
Power Source: 700 mA current regulated |
 |
 |
 |
|
Luxeon I - Blue
Resistor: None
Forward Voltage:
Forward Current: 350 mA |
Circuit Type: single LED
Power Source: 350 mA current regulated |
 |
 |
 |
|
